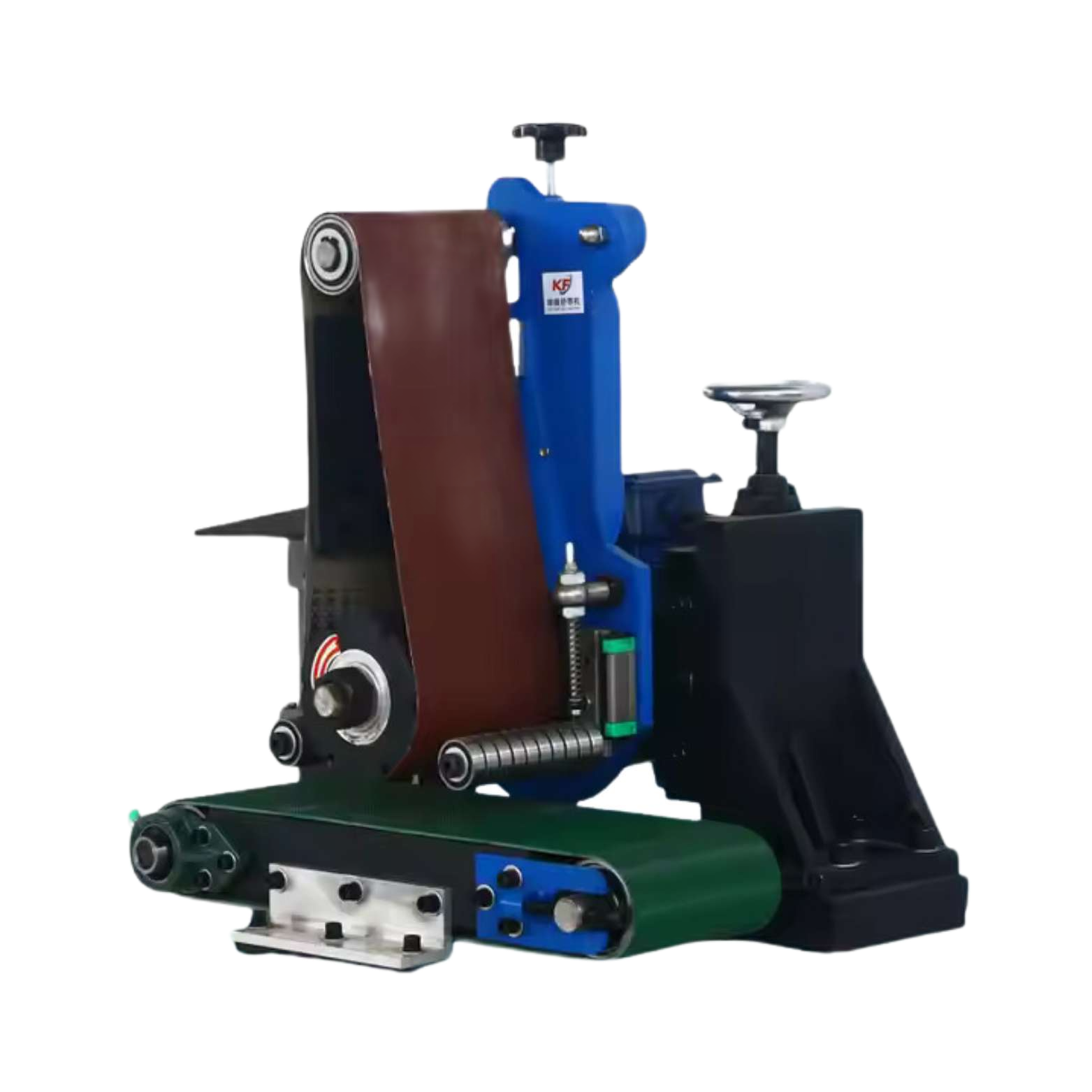

Abrasive Conveyor Belt Polisher

Abrasive Conveyor Belt Polisher

Surface Polishing

Using different types of polishing tools (such as grinding wheels, felt wheels, cloth wheels, nylon wheels, etc.), various degrees of polishing can be applied to the workpiece, achieving a smooth and aesthetically pleasing finish.

Surface Treatment

Cleaning metal surfaces before electroplating, removing oxides, rust, and other impurities, ensuring the effectiveness of subsequent electroplating processes.

Precision Enhancement

Achieving specific flatness, parallelism, and surface finish through precise processing, commonly used for workpieces that require high surface quality

Multi-functional Polishing

Depending on the needs, different types of polishing tools can be selected for sanding, mirror polishing, or even brushing.


Models 150-1
Polishing Thickness 1 - 80 mm
Polishing Width Max 150 mm
Conveyor Belt Size 6" x 42"
Sanding Belt Size 6" x 36"
Conveyor Motor 120 W / 35 RPM
Main Motortd 3 Hp / 415 V / 2800 RPM
Total Weight (Approx) 110 Kg

Standard Accessories :

  • Conveyor Drive Motor
  • Abrasive Drive Motor
  • Dust Shield
  • Conveyor Belt - 1 Nos
  • Sanding Belt - 5 Nos
