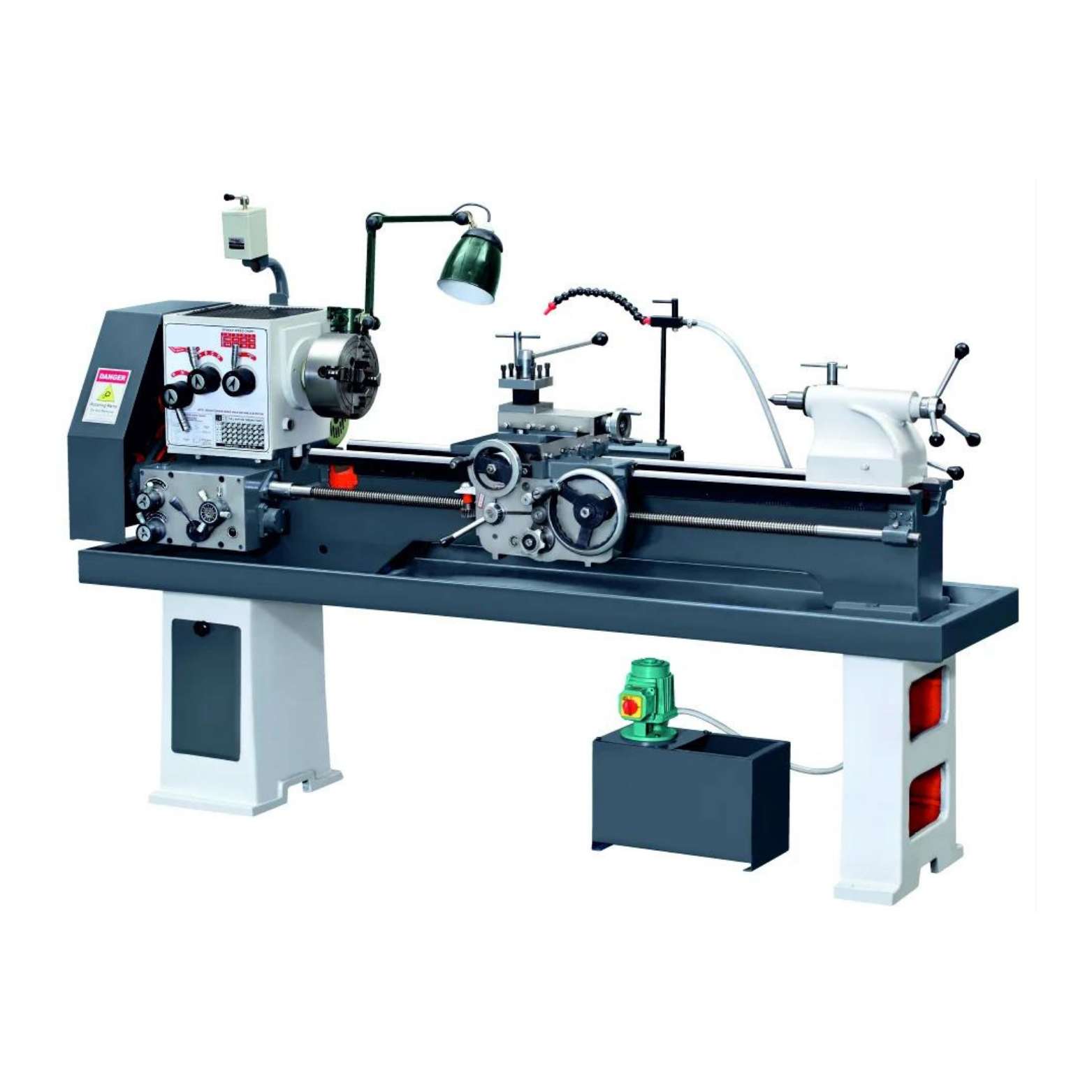

All Gear Medium Duty Lathe

All Gear Medium Duty Lathe


Type of bed Hardened Bed Ways Length of Bed 1825 mm ( 6″ ) Admit between Centre 1000 mm Swing over bed 420 mm Height of centre 215 mm Width of bed 277 mm Swing over cross slide 240 mm Swing in gap 620 mm Length of gap in front of face plate 125 mm
Main spindle
No. Of spindle speed 8
Spindle speed range 40 to 1200 RPM *
Taper in spindle MT-5
Spindle bore 38 mm
Spindle nose A2 – 4
Threads
Lead screw diameter / pitch 31.75 mm / 4 TPI
Nos. Of threads/range
(without norton gear box)		 METRIC : 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
No. of feeds 40
Range of longitudinal feeds 0.066 – 2 mm
Range of transverse feeds 0.0165 – 0.5 mm
Tail stock
Tail stock spindle diameter 50.8 mm
Taper in tail stock quill MT – 4
Travel and tools
Cross slide travel 230 mm
Compound slide travel 140 mm
Tail stock sleeve travel 140 mm
Tool post square 100 mm
Tool shank size 20 mm
Suitable electrical hp 2 HP (3 phase)

Standard Accessories :

  • Chuck back plate
  • Centre adapter
  • Dead centres 2 nos
  • Tool post spanner
  • Motor pulley
  • Thread dial indicator
  • Change gear set
  • Chip tray
  • Norton gear box with double shaft

Optional Accessories :

  • Independent chuck
  • Self centring chuck
  • Chuck back plate extra
  • Steady rest
  • Follow rest
  • Face plate
  • Carrier plate
  • Taper turning attachment
  • Coolant pump with tank and fittings
  • Rear tool post
  • Electricals (motor, wiring, switch, v- belts and fittings)
  • Splash guard
  • Panel board
  • Foundation round plate with levelling bolts
  • Quick change tool post
  • Key way attachment
  • Padel stop
  • Electrical third shaft
